Latest revision as of 11:28, 8 June 2025
Introduction
This radio first appeared in late 2006.
Pictures
 |
 |
 |
 |
 |
 |
 |
Photos reproduced with the permission of Logikir100.tripod.com

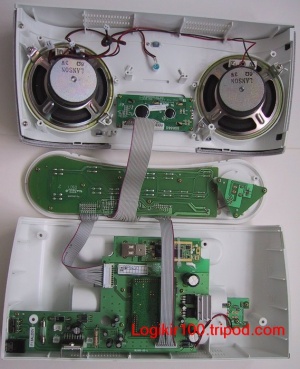

Opening the BT Internet Radio
This is one of the easier radios to open.
- Remove the 4 recessed screws from the back of the case.
- Turn the radio upside down and carefully separate the two halves of the case by no more than 1 to 2 inches.
- Look inside and you will see 3 red/black cables near the bottom of the case. Carefully detach them from the main circuit board.
- You can now fully open up radio.
 |
Firmware
v255-c-194 - circa 2006
No official upgrades available as of April 2010.
User Manual
http://www.shop.bt.com/content/uni2/documentation/4bdq/028983.pdf
Power Supply Unit
Supplied with a 7.5V @ 1.1A switched mode mains power adapter. DC power plug specifications are: 5.5mm diameter/2.1mm inner diameter/12mm long barrel, centre positive polarity. If you are sourcing a replacement, note that a short 9mm length plug will NOT fit this radio properly.
